Program Event Reports

Read the results of program events — energy delivered, device participation, and fleet health

Program Event Reports is where you see what happened during and after a program event — how much energy moved, which devices responded, and whether the fleet is healthy. The shared reports experience covers batteries, chargers, EVs, and thermostats; this page focuses on the battery reports view, but most concepts apply across device types.

The reports answer three questions, one per tab:

• Event Performance — How much energy did the program deliver, and when?
• Device Participation — Which enrolled devices actually took part in a given event, and how much did each contribute?
• Program Health — Are the enrolled devices online and responding reliably over time?

Key concepts to read first#

These conventions apply across every report. Understanding them up front prevents most of the confusion customers run into.

Two energy metrics: Net at Meter vs. Battery#

Battery reports can show energy two different ways, switched with the Energy Metric toggle (Net at Meter / Battery). They answer different questions and are meant to differ:

• Net at Meter (default) — the net energy exchanged between the whole site and the grid, measured at the site's grid connection (via the system's gateway/meter). Because it is a net, whole-site figure, it reflects everything behind the meter — solar, household loads, and every device at the site — not the battery alone. So you may occasionally see unexpected or opposite values: e.g. if solar is charging the battery while it discharges, or the home is consuming what the battery delivers, the meter number can differ from — or even oppose — what the battery by itself is doing.
• Battery — the energy that actually left the battery's cells, derived from the battery's state-of-charge. This is per-battery (no whole-site mixing) and is the more direct read of "what this battery delivered." Because it is measured at the battery, it is gross of inverter/round-trip conversion losses, so it generally reads a little higher than the grid figure.

The Energy Metric toggle appears only for battery programs/events that actually report state-of-charge data; for everything else, reports show the Net at Meter figure.

Export vs. import direction#

Grid energy has a direction. Throughout the reports:

• ↑ Exported to grid — the site sent energy out to the grid (typically battery discharge). Shown in orange/amber.
• ↓ Imported from grid — the site pulled energy in from the grid (typically battery charging). Shown in blue.

When the Battery energy metric is selected, the same colors describe the battery directly: orange/amber = discharged (energy out of the battery), blue = charged (energy into the battery).

All times are shown in your local time#

Timestamps and time windows display consistently in your local browser time zone across every report and filter. If you operate a program in another region, convert the event's scheduled hours to your local time when reading the charts — for example, an event scheduled 6–9 PM Pacific appears as 8–11 PM for a viewer in Central time.

Event phases: charge, idle, discharge#

A single event can contain multiple phases. A typical battery event charges the batteries first, holds (idle), then discharges during the target window. Two terms matter when reading totals:

• Discharge window — only the portion of the event when devices were asked to discharge to the grid.
• Entire event — the full event, including the charge-up and idle phases.

Several views let you toggle between these two scopes, which changes the kWh totals you see.

Where to find the reports#

Open a program from the dashboard and select Reports. You can also reach a single event's report from Program Events → Event Details → View report.

At the top of the Reports page you'll find three shared controls:

• Program selector (top right) — choose which program you're reporting on.
• Date range — Last 24h, Last 7d, Last 30d, or a custom range via the calendar.
• Asset type — Battery, Charger, EV, or Thermostat. Reports are scoped to one asset type at a time.

Tab 1 — Event Performance#

This tab summarizes all events in the selected date range and asset type.

Summary metrics#

Headline card#

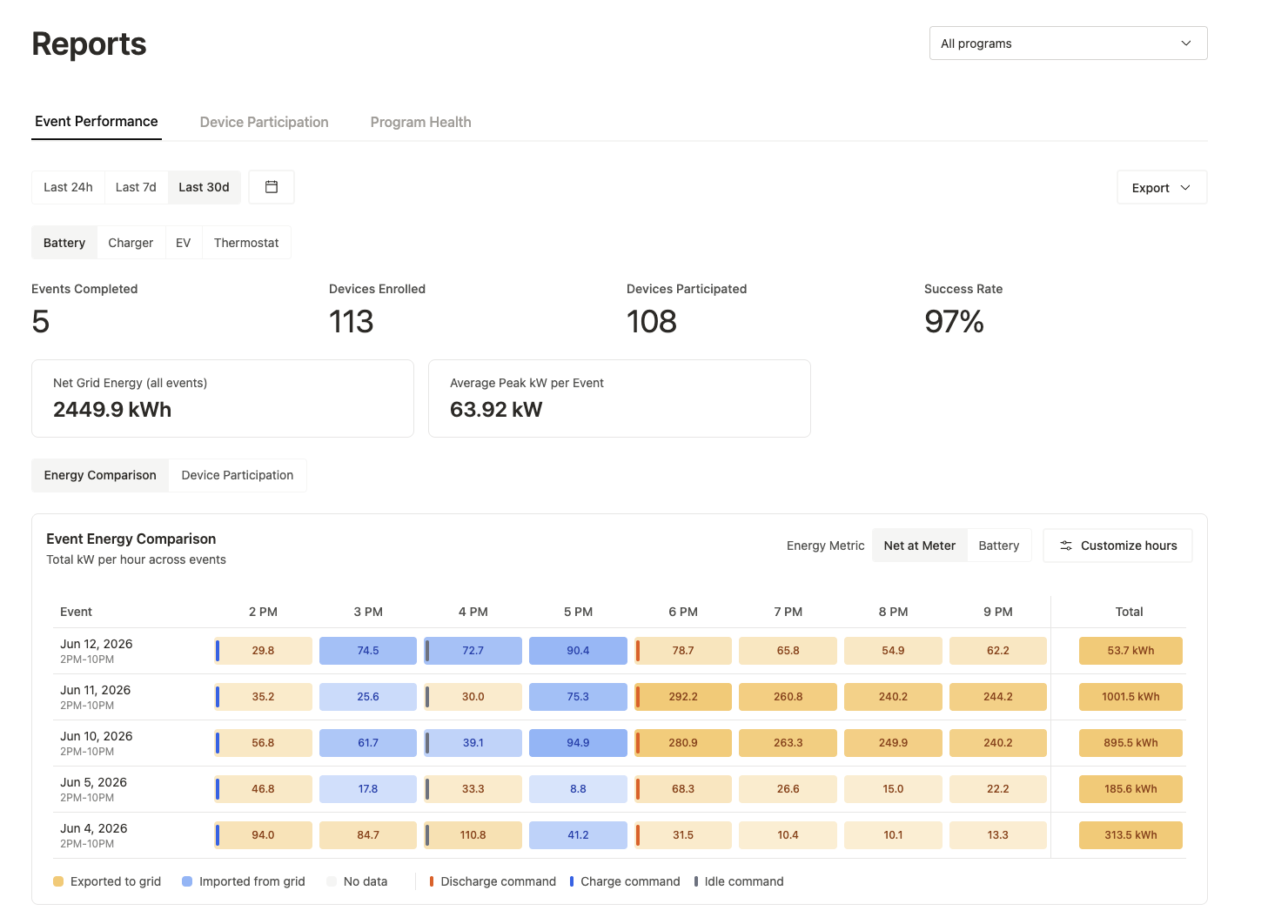

Reading the Event Energy Comparison chart#

The Energy Comparison view shows energy (kWh) per hour across events as a color-coded grid. Each row is one event; each column is an hour of the day; the final column is that event's total energy in kWh.

How to read a cell:

• Cell fill color shows the energy direction for that hour — amber/orange for energy exported to grid (or, under the Battery metric, discharged from the battery), blue for energy imported from grid (charged), grey for no data.
• The colored bar on the left edge of a cell shows the command that was active that hour — orange for a discharge command, blue for a charge command, grey for idle.
• Color intensity reflects the magnitude — darker cells moved more energy.

For battery programs with state-of-charge data, the Energy Metric toggle (next to the Customize hours button) switches the whole chart — cells, totals, and color scaling — between Net at Meter and Battery.

By default the chart spans the full program window. Use the Customize hours button to narrow the view to specific hours (for example, just the discharge window).

Reading tip: A row that is mostly blue on the left (early hours) then amber on the right (later hours) is the normal shape of a battery event: charge up first, then discharge to the grid during the target window.

Tab 2 — Device Participation#

This tab breaks a single event down device by device: who took part and how much each one contributed. Pick the event from the Event dropdown, then filter by status, asset type, manufacturer, or member name.

Summary cards#

• Enrolled — devices signed up for the program at the time of the event.
• Participated — devices that responded and took part (shown with a percentage of enrolled).
• Did not participate — enrolled devices that did not take part.

The device table#

Two toggles (top right of the table) control this column:

• Energy Metric: Net at Meter / Battery — which energy source to show (see Two energy metrics above). Appears only when the event has batteries reporting state-of-charge.
• Show kWh Totals for: Discharge Window / Entire Event — the time scope: the discharge window only, or the full event (charge + idle + discharge). See Event phases above.

The two combine — e.g. Battery × Discharge Window shows each battery's discharge during the discharge phase only.

Tab 3 — Program Health#

This tab is about reliability over time rather than the energy outcome of a single event. Choose a window (Last 30 / 60 / 90 days, or custom) and filter by status, asset type, manufacturer, or member.

Summary cards#

• Total devices — devices in the program for the window.
• Online / Offline — current connectivity of those devices.
• Needs attention — devices flagged with one or more issues (see thresholds below).

The fleet health table#

The Event Details page#

Reached from Program Events, this page describes one specific event. The View report button takes you to the Reports tabs filtered to this event.

Actions#

Each event lists its phases as numbered Actions, each with a time window and status. For example:

"Min reserve" is the floor the battery is told not to discharge below, protecting the customer's backup capacity.

Headline metrics#

• Enrolled Sites — sites participating in this event.
• Overall Response Rate — share of enrolled sites/devices that acknowledged the dispatch.

The site table#

Quick glossary#
